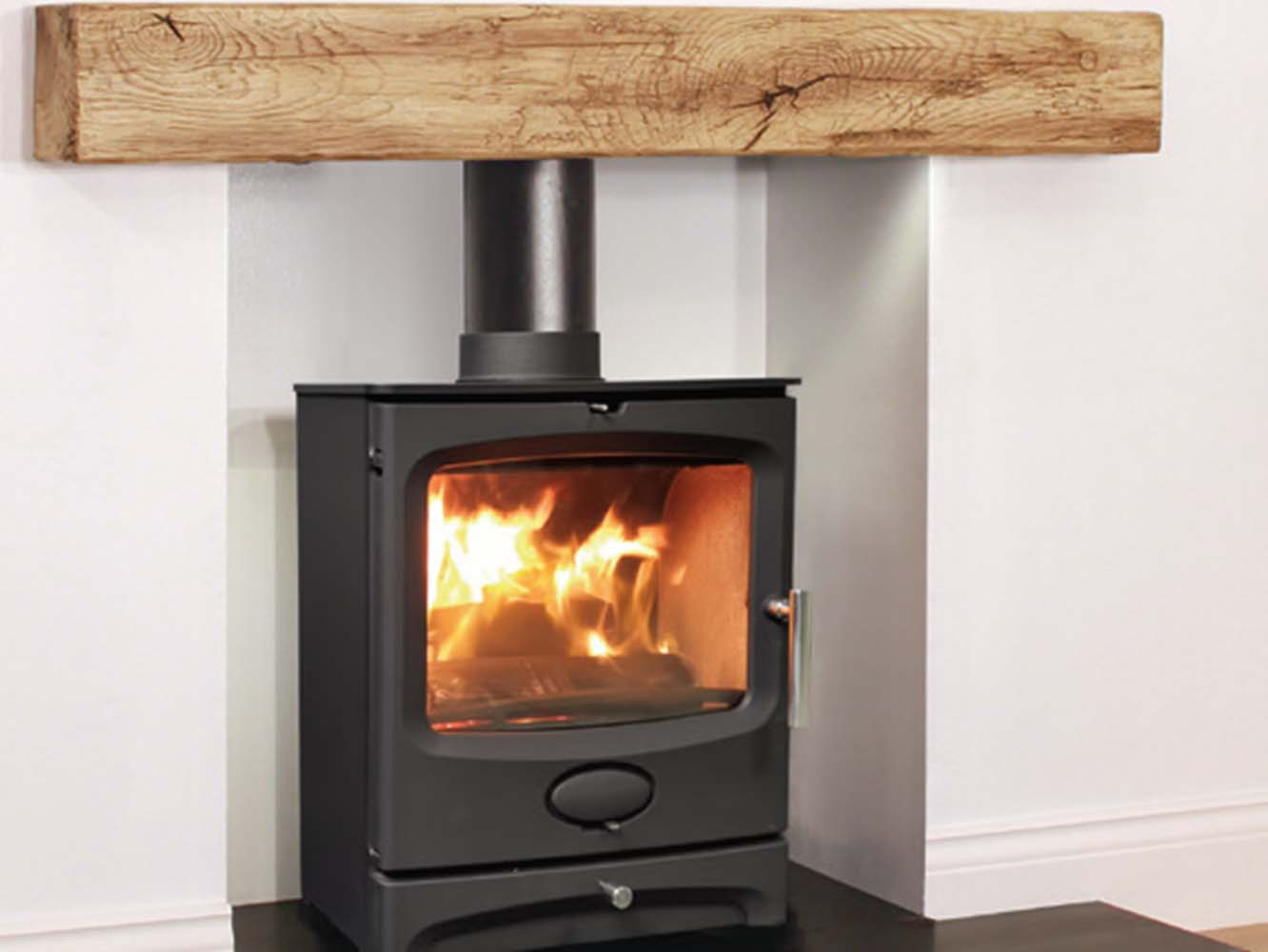

Easedale 5 SE

A brand-new model designed especially for the new clean burn regulations of 2022. An attractive design with fine proportions enhanced further by the landscape window achieving the best possible view of the burning fire.Boasting a nominal heat output of 5kw and an impressive efficiency of 80.7% when burning wood this all new stove is sure to be a popular choice.

Features

• Steel and cast-iron construction.
• Top or rear flue outlet.
• Additional room ventilation not normally required, (England & Wales) subject to testing when installed by an approved stove installer and date of
• building construction etc.
• Air wash system to glass. (Helps prevent the build up of burnt deposits to the glass window).
• Stainless steel handle.
• Clean burn technology.
• Multi fuel.
• Eco design ready.
• CE tested.
• Smoke exempt tested.
• Attractive design with landscape window.

Specifications

Fuel Wood
Approved smokeless fuels
Nominal output wood 5.0kw
Nominal output smokeless fuel 5.0kw
Efficiency wood net: 80.7%
Efficiency approved smokeless fuel net: 79%
Seasonal efficiency - Wood Logs: 70.7%
Seasonal efficiency - Smokeless Fuel: 69.0%
Emission data wood.
PM mg/m3 @ 13% 02: 11
OGC mg/m3 @ 13% 02: 79
CO emission mg/m3 @ 13% 02: 1250
NoX mg/m3 @ 13% 02: 109
Energy rating A+
Energy Efficiency Index: 107
Emission data Maxibrite smokeless fuel
PM mg/m3 @ 13% 02: 13
OGC mg/m3 @ 13% 02: 29
CO emission mg/m3 @ 13% 02: 875
NoX mg/m3 @ 13% 02: 114
Approximate weight 65kgs
Maximum log length 25cm
Stove collar diameter 130mm Internal
Flue location Top or rear
Smoke exempt tested Yes
Air wash to glass Yes
Construction Steel and cast iron
Adjustable legs Yes
Handle Stainless steel
CE tested Yes
Eco design ready Yes
Quality assurance ISO 9001:2008
Minimum flue diameter required 125mm internal diameter
(Smoke exempt tested)
