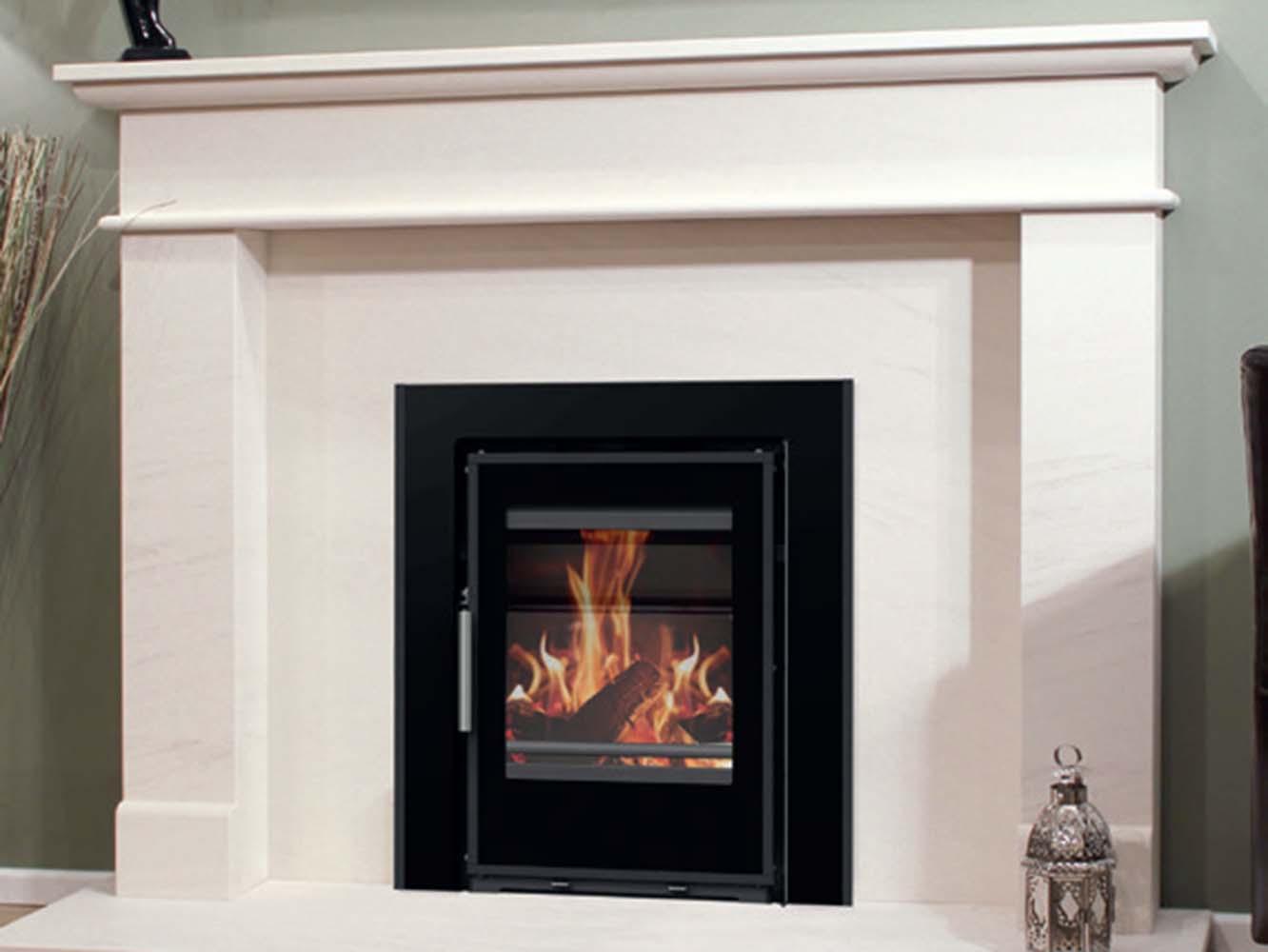

Coniston 5 SE

This powerful gem of a stove will improve efficiencies considerably from a normal open fire with an impressive 83% efficiency.The Coniston inset stove uses a very large ceramic glass window of modern design, with the option of either a black glass 3 or 4 sided outer frame that compliments the glass window with style giving a clean and uncluttered appearance.Multi fuel use, so can either burn wood logs or smokeless fuel.

Features

• Cleanburn technology
• Large ceramic glass window forultimate view
• Stainless steel handle
• Multi fuel
• Air wash system to glass. (Helps prevent the build up of burnt deposits to the window).
• Additional room ventilation not normally required, (England & Wales) subject to testing when installed by an approved stove installer and date of
• building construction etc.
• CE approved
• Smoke exempt tested
• Eco 2022 design compliant

Specifications

Fuel Wood or smokeless fuel
Nominal heat output 4.6kw wood logs
4kw smokeless fuel
Efficiency net. 83.3% wood logs
Efficiency net. 83.8% smokeless fuel
Emission data wood:
Seasonal efficiency: 73.3%
PM mg/m3 @ 13% O2: 30
OGC mg/m3 @ 13% O2: 105
CO mg/m3 @ 13% O2: 1500
NoX mg/m3 @ 13% O2: 104
Energy Rating: A+
Energy Efficiency Index: 111
Emission data smokeless fuel:
Seasonal efficiency: 73.8%
PM mg/m3 @ 13% O2: 9
OGC mg/m3 @ 13% O2: 19
CO mg/m3 @ 13% O2: 625
NoX mg/m3 @ 13% O2: 142
CE approved Yes
Smoke exempt tested Yes
Eco 2022 compliant Yes
Quality assurance ISO 9001:2008
Air wash to glass Yes
Handle Stainless steel
External frame options 3 sided glass
4 sided glass
Approximate weight 75kg
Maximum log length 20cm
Stove collar diameter 130mm internal
Flue location Top
