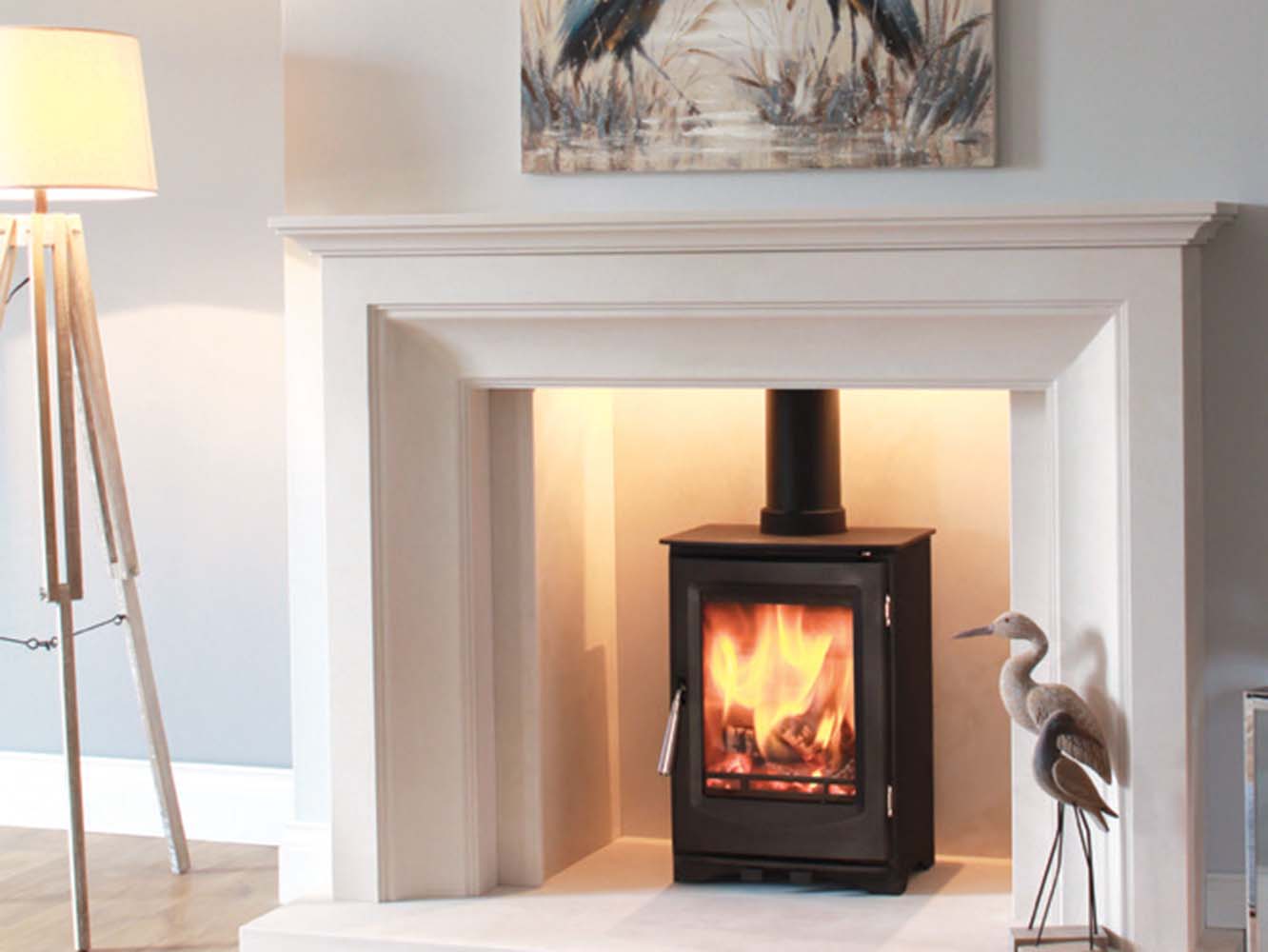

Newman Panther
Introducing our latest Eco design wood burning stove manufactured to the latest 2022 regulations that meets the strict requirements for emissions and efficiency. The very large ceramic glass window takes advantage of the burning fire effortlessy. Designed with clean cut lines making it ideal for today’s living.

Features

  • A powerful all new stove that boasts high efficiency with its double baffle design
  • Ash pan for easy removal of ash and residue material.
  • Convenient size that should be compatible with most class 1 chimneys
  • Clean and modern design.
  • Very large ceramic glass window for ultimate burning view.
  • Air wash system to glass.
  • Secondary tertiary air supply for improved efficiencies and reduced emissions when burning wood.
  • Additional room ventilation not normally required, (England & Wales) subject to testing when installed by an approved stove installer and date of building construction etc.
  • High quality.
  • Clean burn technology
  • Predominantly steel construction with cast iron door and fire grate.
  • Universal top or rear flue exit subject to installation requirements.
  • CE approved.
  • HETAS approved.
  • Smoke exempt tested.
  • Eco design ready.


Specifications

Fuel Wood
Nominal heat output wood 4.9kw
Efficiency wood 78.7%
Seasonal Efficiency: 68.4%
PM mg/m3 @ 13% O2: 27
OGC mg/m3 @ 13% O2: 97
CO mg/m3 @ 13% O2: 1209
NoX mg/m3 @ 13% O2: 116
Energy Rating: A
Energy Efficiency Index: 104
Approximate weight 66kgs
Maximum log length 21cm
Stove collar diameter 130mm internal
Flue location Top or rear
Air wash to glass Yes
Casing construction Steel
Adjustable legs Yes
Handle Stainless steel and optional bakelite
CE approved Yes
Eco design ready Yes
Quality assurance ISO 9001:2008
Minimum flue diameter required 125mm Smoke exempt tested
